Magnizon MU6000RM3U 6000VA / 6000 watt Smart online, double-conversion UPS system offers complete power protection for critical applications. True online, double-conversion technology supports the critical loads with zero transfer time(0mSec), suitable for advanced networking applications. Fault-tolerant Static-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. With built-in manual bypass switch enables hot-swappable replacement of entire UPS power module with zero down time to connected equipment. Elegant LCD display with vast scope of monitoring and setting up of various paraments make UPS tailored for each specific application.
Images Available
key benefits, specs and more...

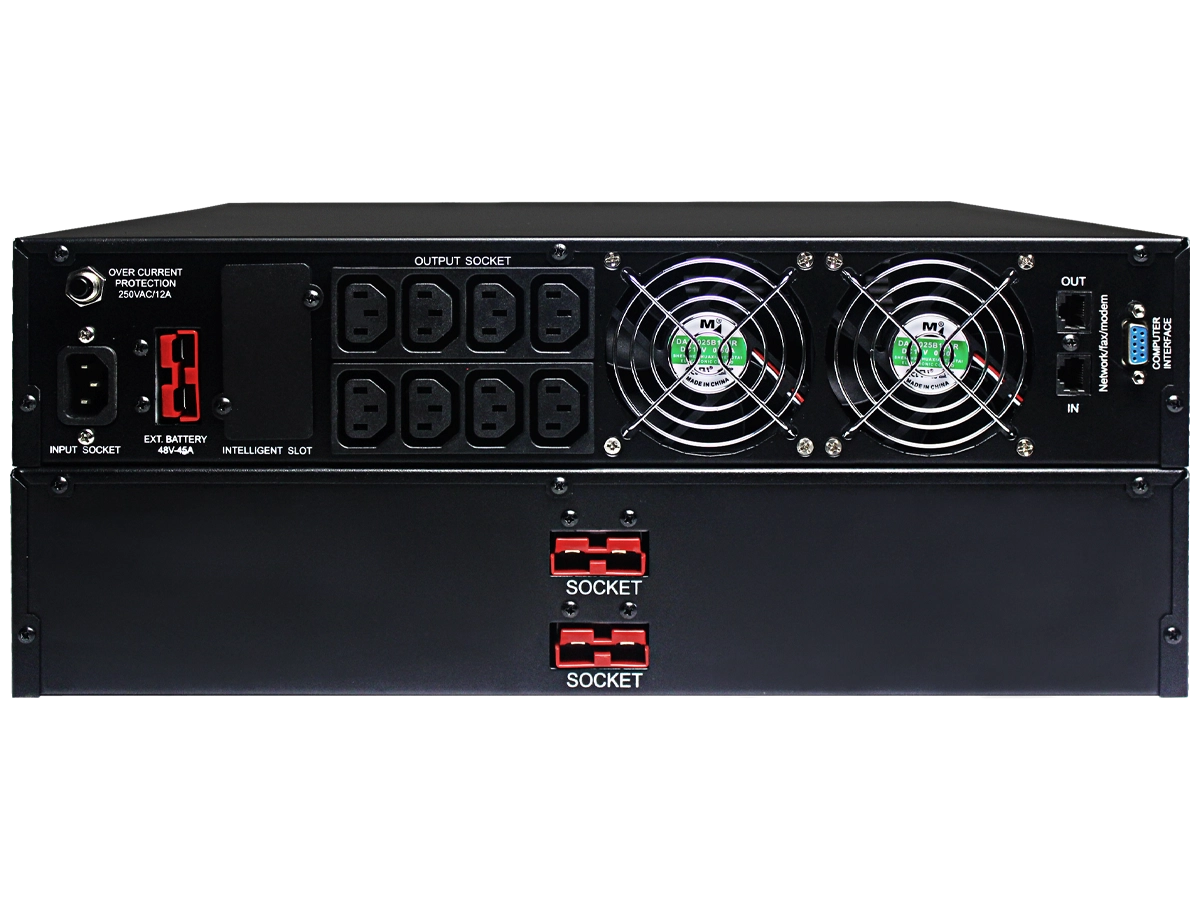

- Magnizon MU6000RM3U 6KVA/6KW smart on-line, double-conversion UPS system in 6U total rack/tower configuration (3U UPS power module and 3U external battery pack)
- Maintains full-time pure sine wave output within 2% of selectable 220/230/240V nominal during brownouts as low 110V and over voltages as high as 300V
- Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions
- Online double conversion technology With advanced DSP control
- Wide input voltage range(110～300VAC) can adapt to different power grid environment
- DC start (cold start) function
- Input PFC filters
- Built-in static bypass and manual bypass switches
- Parallel port to connect up to 3nos of 6KVA
- Input power factor 1.0 and Unity Output power factor
- Strong over load capacity
- Supporting rack/tower structure, high power density saving space
- Built-in protections: Over voltage, Over load, Over current, Battery overcharge, Battery deep discharge protection, battery low voltage protection
- LCD display and LED indicator show detailed UPS status and parameters
- Friendly man-machine interface, Simple setting Output Voltage, Frequency parameter and Bypass function on the display
- Lightning, surge, short -circuit protection
- Smart RS232 communication with monitoring software
- Full-time active power conditioning provides clean, continuous dual-conversion AC output free of voltage fluctuations, power interruptions and line noise
- Double-conversion operation converts raw input from AC to DC, then resynthesizes output power back to perfect sine wave AC with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types
- Supports 50/60Hz operation for worldwide frequency compatibility
- Expandable runtime is supported with optional BP192V9RM3U or any 192V battery DC bus external battery packs
- Intelligent battery management system with temperature-compensated charging with advanced 4-stage battery charging algorithm extends battery life
- Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement
- Rack mount and tower mount kits included for both Battery pack and UPS module
- Adjustable telescopic rail kits suits any depth of the rack
- LED / LCD display panel rotates for viewing in rackmount or tower configurations
- Network-grade AC surge and noise suppression
- External battery packs are field replaceable and hot swappable
- MU6000RM3U , 6KVA 3U power module
- MU6000RM3U , 6KVA 3U power module
- BP192V9RM3U, 3U external battery pack
- Battery connection cables with connectors
- Four post compatible, telescopic adjustable rack rail kit -4 sets (2 for UPS and 2 for battery pack)
- Tower stands for upright tower configuration
- RS232 cabling and CD
- User manual
