overview
Magnizon MU1000RM2U 1000VA / 1000 watt Smart online, double-conversion UPS system offers complete power protection for critical applications. True online, double-conversion technology supports the critical loads with zero transfer time(0mSec), suitable for advanced networking applications. Fault-tolerant Static-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Elegant LCD display with vast scope of monitoring and setting up of various paraments make UPS tailored for each specific application.
Images Available
key benefits, specs and more...

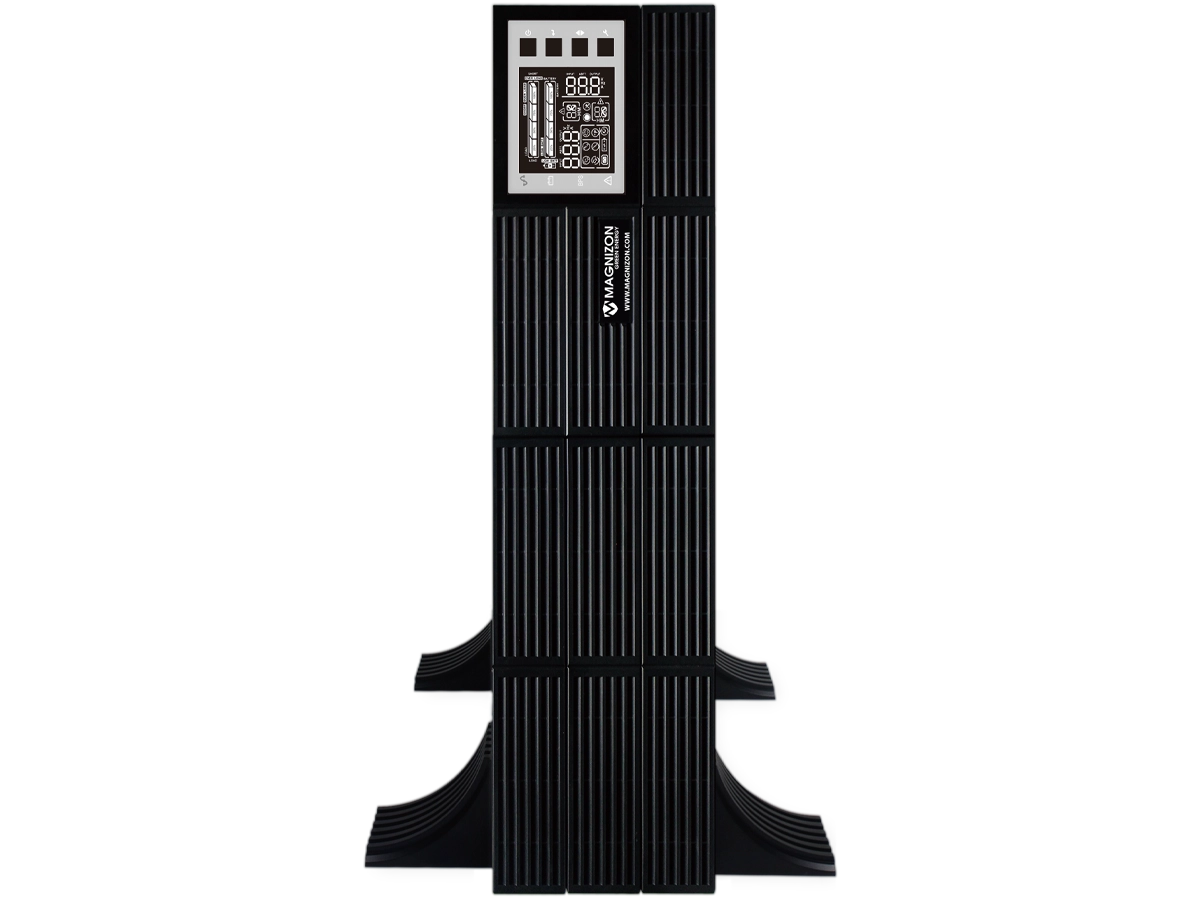

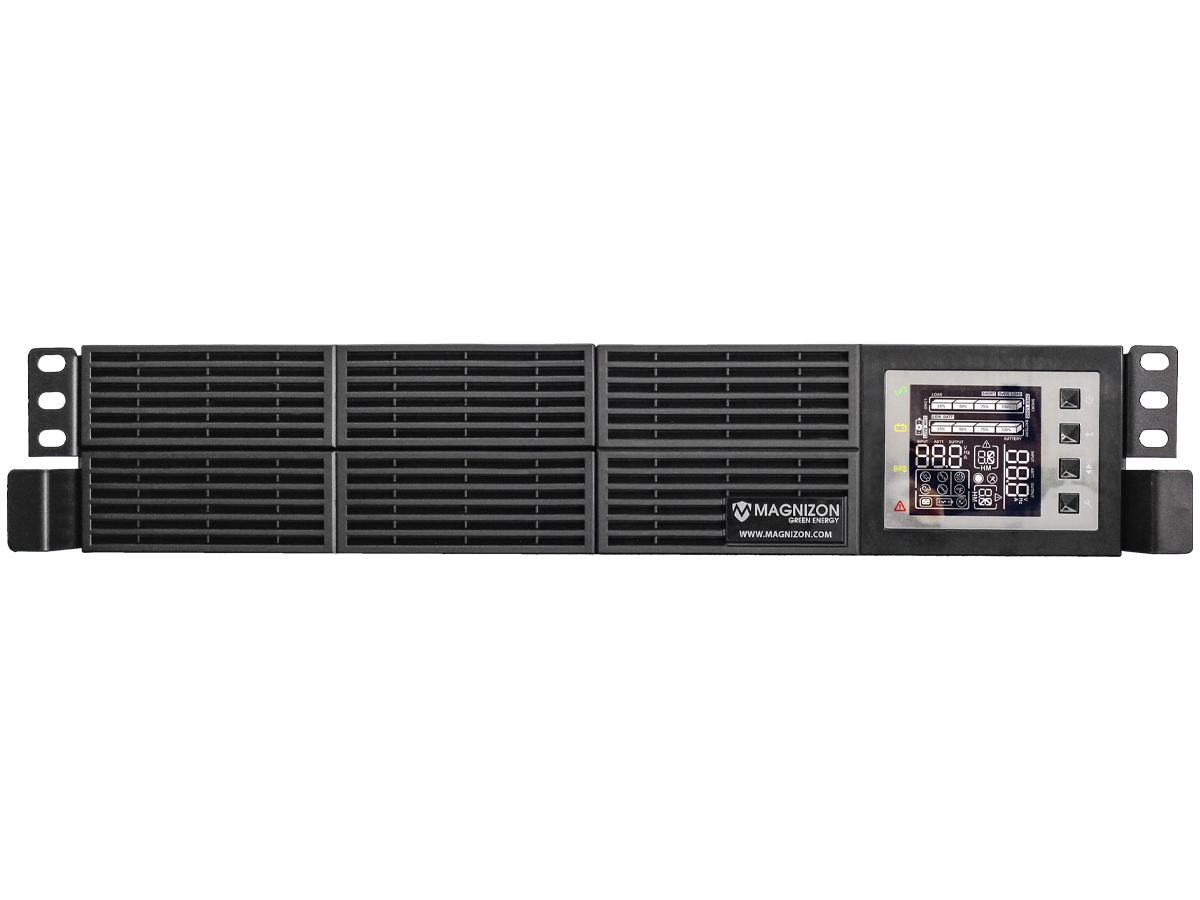

- Magnizon MU1000RM2U 1KVA/1000W smart on-line, double-conversion UPS system in 2U total rack/tower configuration
- Maintains full-time pure sine wave output within 2% of selectable 220/230/240V nominal during brownouts as low 110V and over voltages as high as 300V
- Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions
- Online double conversion technology with advanced DSP control
- Wide input voltage range(110～300VAC) can adapt to different power grid environment
- DC start (cold start) function
- Input PFC filters
- Built-in static bypass switches
- Input power factor 1.0 and unity Output power factor
- Strong over load capacity
- Supporting rack/tower structure, high power density saving space
- Built-in protections: Over voltage, Over load, Over current, Battery overcharge, Battery deep discharge protection, battery low voltage protection
- LCD display and LED indicator show detailed UPS status and parameters
- Friendly man-machine interface, Simple setting Output Voltage, Frequency parameter and Bypass function on the display
- Lightning, surge, short -circuit, network/fax/modem surge protection
- Smart RS232 communication with monitoring software
- Full-time active power conditioning provides clean, continuous dual-conversion AC output free of voltage fluctuations, power interruptions and line noise
- Double-conversion operation converts raw input from AC to DC, then resynthesizes output power back to perfect sine wave AC with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types
- Supports 50/60Hz operation for worldwide frequency compatibility
- Expandable runtime is supported with optional BP24V9RM Series for extended backup requirements
- Intelligent battery management system with temperature-compensated charging with advanced 4-stage battery charging algorithm extends battery life
- Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement
- Rack mount and tower mount kits included for both Battery pack and UPS module
- Adjustable telescopic rail kits suit any depth of the rack
- LED / LCD display panel rotates for viewing in rackmount or tower configurations
- Network-grade AC surge and noise suppression
- External battery packs are field replaceable and hot swappable
- Small office and home office (SOHO) applications
- Photocopiers/EPBAX/FAX/SCANNER
- Music players & smart TV applications
- Desktops, servers & storage applications
- Game stations and smart toys
