Magnizon MU2000RM3U 2000VA / 2000 watt Smart online, double-conversion UPS system offers complete power protection for critical applications. True online, double-conversion technology supports the critical loads with zero transfer time(0mSec), suitable for advanced networking applications. Fault-tolerant Static-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Elegant LCD display with vast scope of monitoring and setting up of various parameters make UPS tailored for each specific application.
Images Available
key benefits, specs and more...

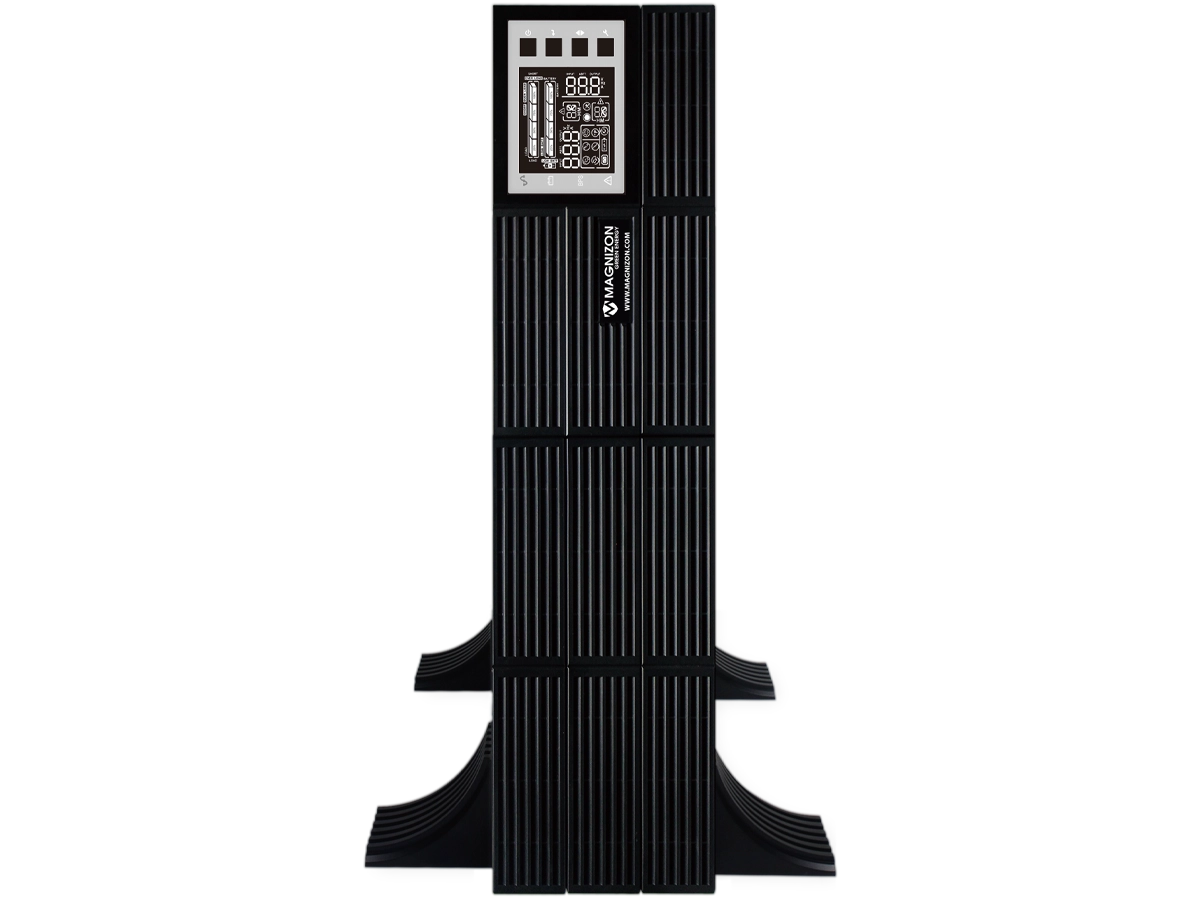

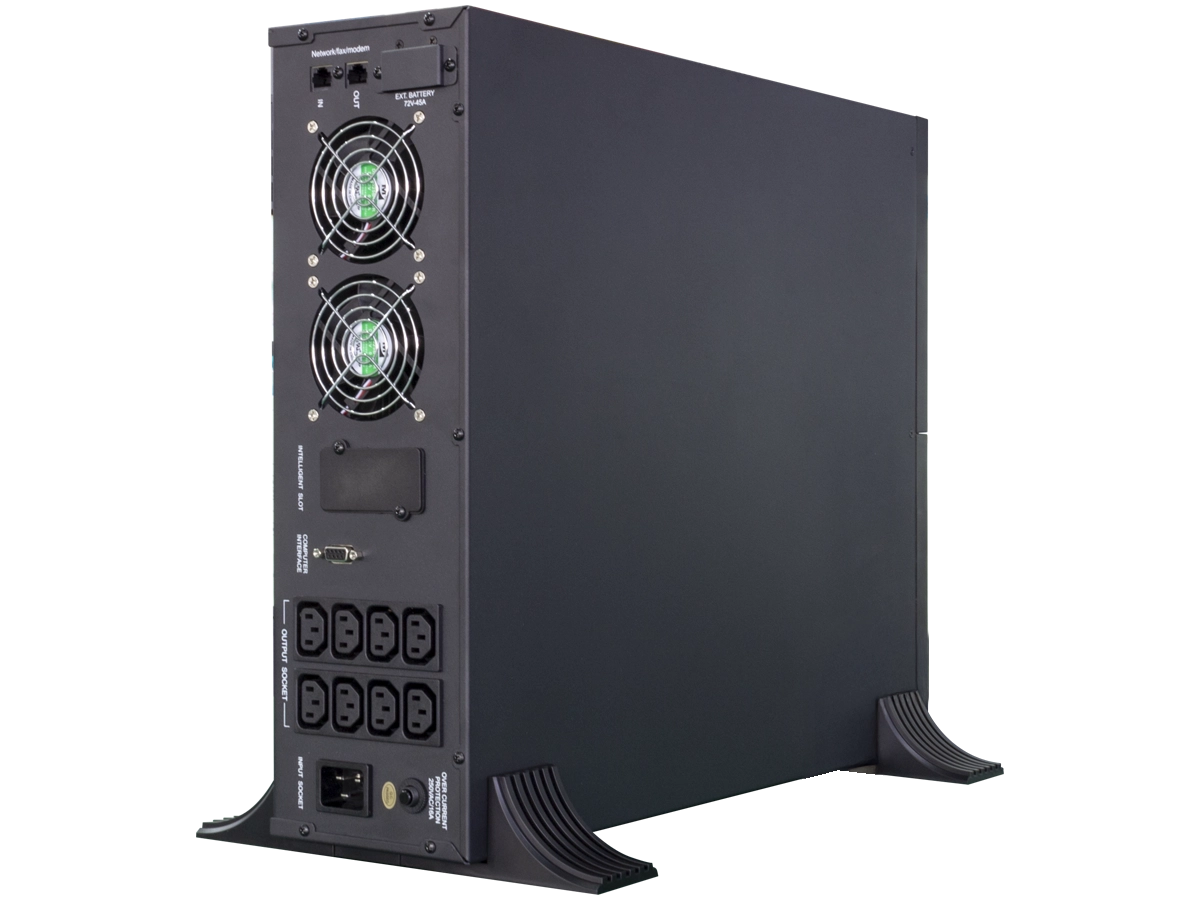

- Magnizon MU2000RM3U 2KVA/2KW smart on-line, double-conversion UPS system in 3U total rack/tower configuration
- Maintains full-time pure sine wave output within 2% of selectable 220/230/240V nominal during brownouts as low 110V and over voltages as high as 300V
- Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions
- Online double conversion technology with advanced DSP control
- Wide input voltage range(110～300VAC) can adapt to different power grid environment
- DC start (cold start) function
- Input PFC filters
- Built-in static bypass
- Input power factor 0.99 and Unity Output power factor

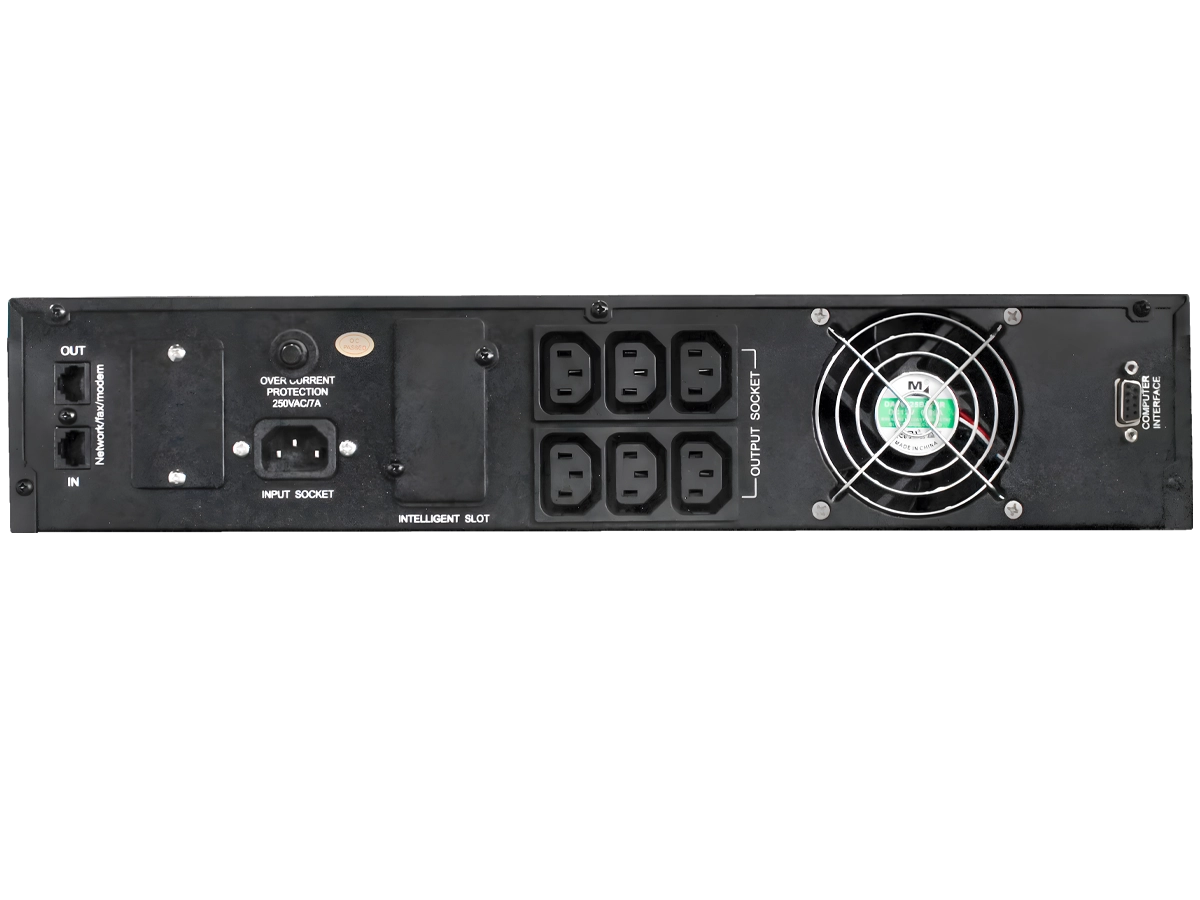

- Built in 8nos of IEC C13 outlets
- Strong over load capacity
- Supporting rack/tower structure, high power density saving space
- Built-in protections: Over voltage, Over load, Over current, Battery overcharge, Battery deep discharge protection, battery low voltage protection
- LCD display and LED indicator show detailed UPS status and parameters
- Friendly man-machine interface, Simple setting Output Voltage, Frequency parameter and Bypass function on the display
- Lightning, surge, short -circuit, network/fax/modem surge protection
- Smart RS232 communication with monitoring software
- Full-time active power conditioning provides clean, continuous dual-conversion AC output free of voltage fluctuations, power interruptions and line noise
- Double-conversion operation converts raw input from AC to DC, then resynthesizes output power back to perfect sine wave AC with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types
- Supports 50/60Hz operation for worldwide frequency compatibility
- Expandable runtime is supported with optional external battery packs
- Intelligent battery management system with temperature-compensated charging with advanced 4-stage battery charging algorithm extends battery life
- Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement
- Rack mount and tower mount kits included for both Battery pack and UPS module
- Adjustable telescopic rail kits suit any depth of the rack
- LED / LCD display panel rotates for viewing in rackmount or tower configurations
- Network-grade AC surge and noise suppression
- External battery packs are field replaceable and hot swappable
- MU2000RM3U, 2KVA 3U power module
- Four post compatible, telescopic adjustable rack rail kit -2 sets
- Tower stands for upright tower configuration
- RS232 cabling and CD
- User manual
