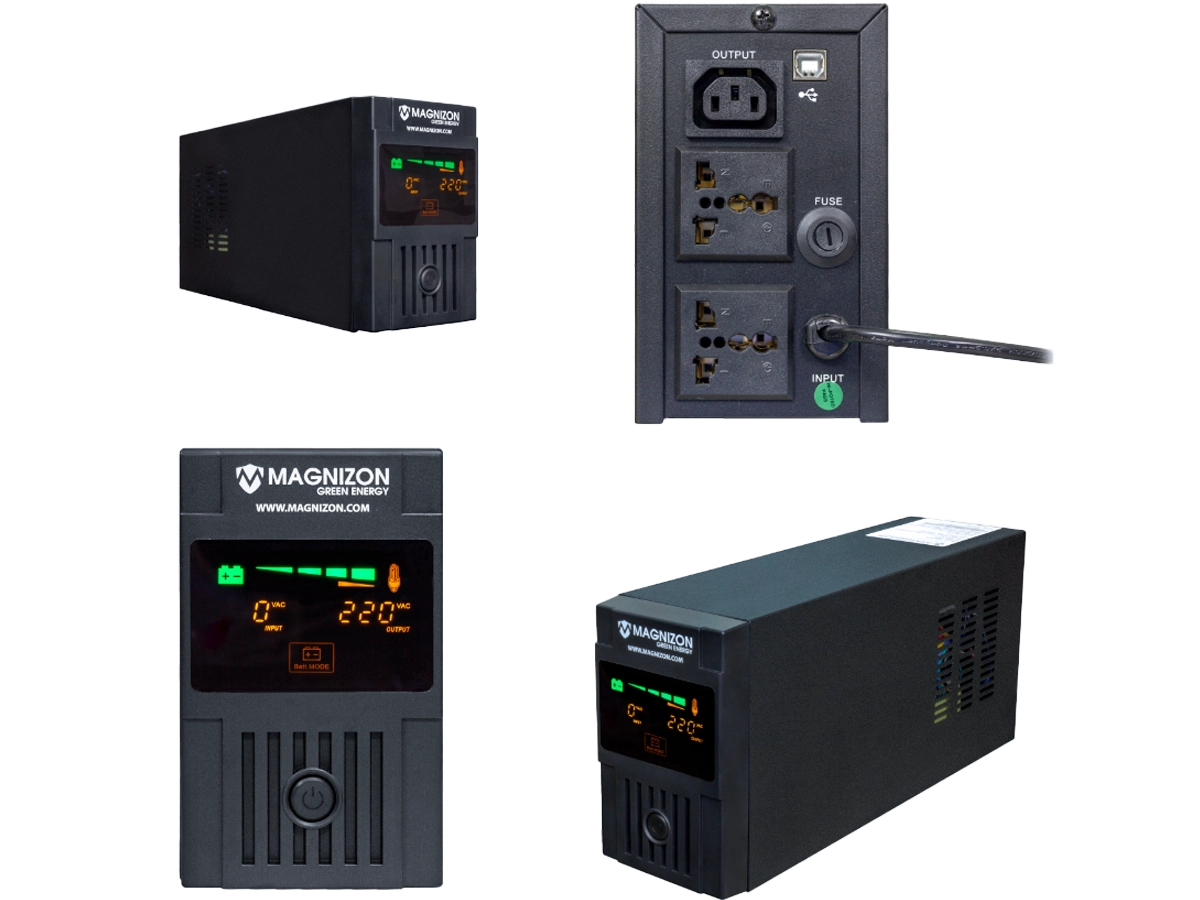

MU650VS

OUTPUT DATA

Output Volt Amp Capacity (VA)

650

Output Watt Capacity (Watts)

390

Nominal Output Voltage(s) Supported

220V; 230V; 240V

Nominal Voltage Details

230V nominal output in battery mode

Frequency Compatibility

50 / 60 Hz

Frequency Compatibility Details

Automatic frequency selection

Output Voltage Regulation (Line Mode)

230V (±9.5%)

Output Voltage Regulation (Battery Mode)

230V (±5%)

Output Receptacles

1no C13 and 2nos Universal Outlets

Output AC Waveform (AC Mode)

Sine wave

Output AC Waveform (Battery Mode)

PWM sine wave

INPUT DATA

Rated input current (Maximum Load)

2.8A

Nominal Input Voltage(s) Supported

230V AC

UPS Input Connection Type

Cable with Plug

Input Phase

Single-Phase

BATTERY DATA

Full Load Runtime (min.)

3 min. (390w)

Half Load Runtime (min.)

6 min. (195w)

DC System Voltage (VDC)

12

Battery Recharge Rate (Included Batteries)

8 hours from 10% to 90%

Battery Replacement Description

See manual for battery replacement information

Transfer Time

4~6 milliseconds

Low Voltage Transfer to Battery Power (Setpoint)

130V

High Voltage Transfer to Battery Power (Setpoint)

290V

VOLTAGE REGULATION

Voltage Regulation Description

Automatic voltage regulation (AVR) maintains line power operation with input voltage as low as 130 and as high as 290

Overvoltage Correction

Input voltages between 240 and 290 are reduced by 10%

Undervoltage Correction

Input voltages between 130 and 210 are boosted by 15%

USER INTERFACE, ALERTS & CONTROLS

Switches

1 Switch controls off/on power status

Audible Alarm

Audible alarm with distinct tone patterns indicates low-battery, overload, replace-battery and fault-mode

LCD Display

Large color LCD with AC input, AC output, Load, Battery status, fault condition, error code display

LED Indicators

Front panel LEDs indicate off/on power status, line power availability, battery mode operation, overload, replace-battery and fault-mode

SURGE / NOISE SUPPRESSION

UPS AC Suppression Joule Rating

325

UPS AC Suppression Response Time

Instantaneous

EMI / RFI AC Noise Suppression

Yes

PHYSICAL

Installation Form Factors Supported with Included Accessories

Tower

Primary Form Factor

Tower

UPS Power Module Weight (kg)

4.8kgs

Shipping Weight (kg)

5.1Kgs

UPS Housing Material

Stainless steel

Dimension (DxWxH mm)

320x 90 x 150

ENVIRONMENTAL

Operating Temperature Range

0 to 40°C

Storage Temperature Range

-15 to 45°C

Relative Humidity

Up to 90%, non-condensing

AC Mode BTU / Hr. (Full Load)

26

AC Mode Efficiency Rating (100% Load)

95%

Noise level

less than 35dB

Operating Elevation (m)

0-2000m

Communications Interface

USB

COMMUNICATIONS

Communications Interface

USB/RS232 Serial

Network Management Cards

N/A

Software compatibility

Windows family all versions, Linux, Sun Network OS, IBM Aix, Compaq Tru64 SGI IRIX, FreeBSD, HP-UX and MAC

UPS monitoring Software

Supplied along with UPS. Optional SNMP card with web based available on request

Communications Cable

RS232 serial

CERTIFICATIONS & WARRANTY

UPS Certifications

CE, EN/IEC 62040-1:2008, EN/IEC 62040-2:2006, EN/IEC 61000-3-3:2013, EN/IEC 61000-3-2:2014

UPS Quality standards

ISO9001:2015, ISO14001:2015, RoHs

Product Warranty Period (Worldwide)

1-year limited Warranty
