overview
Magnizon VS Series is a smart line interactive UPS with the most advanced DSP control technology with built in boost & buck AVR technology which can protect the sensitive device from utility fail, over /under voltage, surges, transients, spikes and other electrical abnormalities. With automatic boot voltage regulation and wide input voltage range, VS series UPS is a good choice to be applied to all kinds of complex power environment

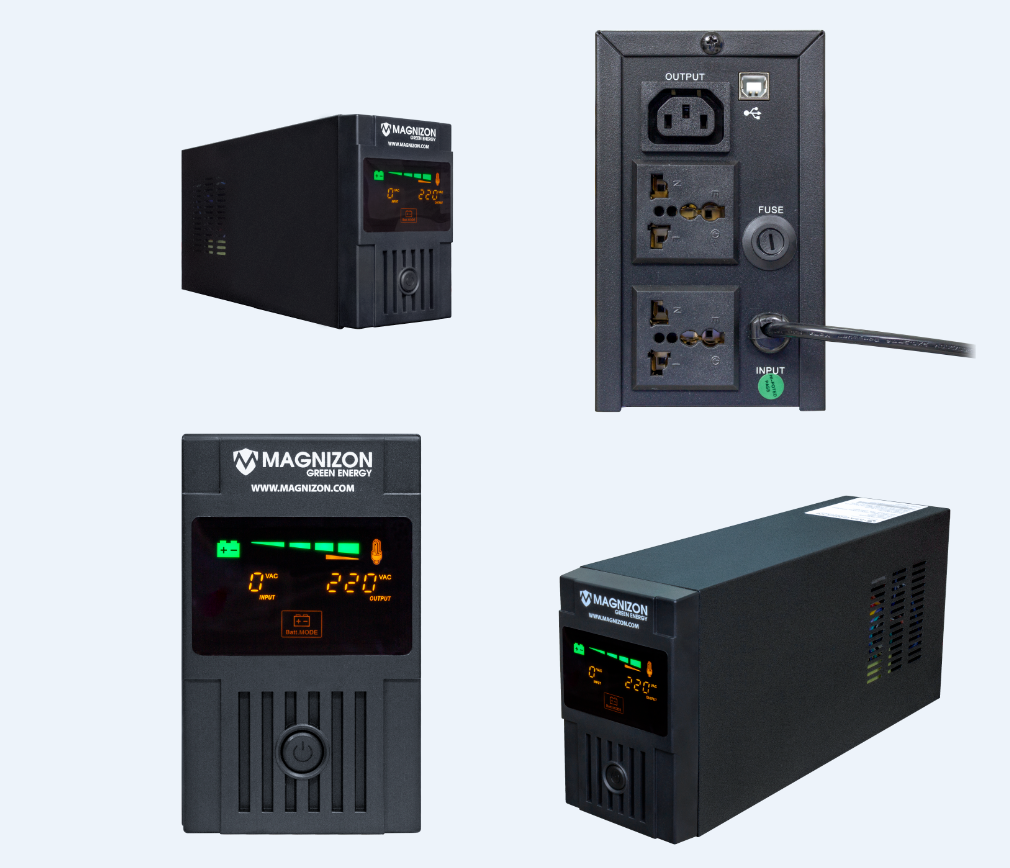

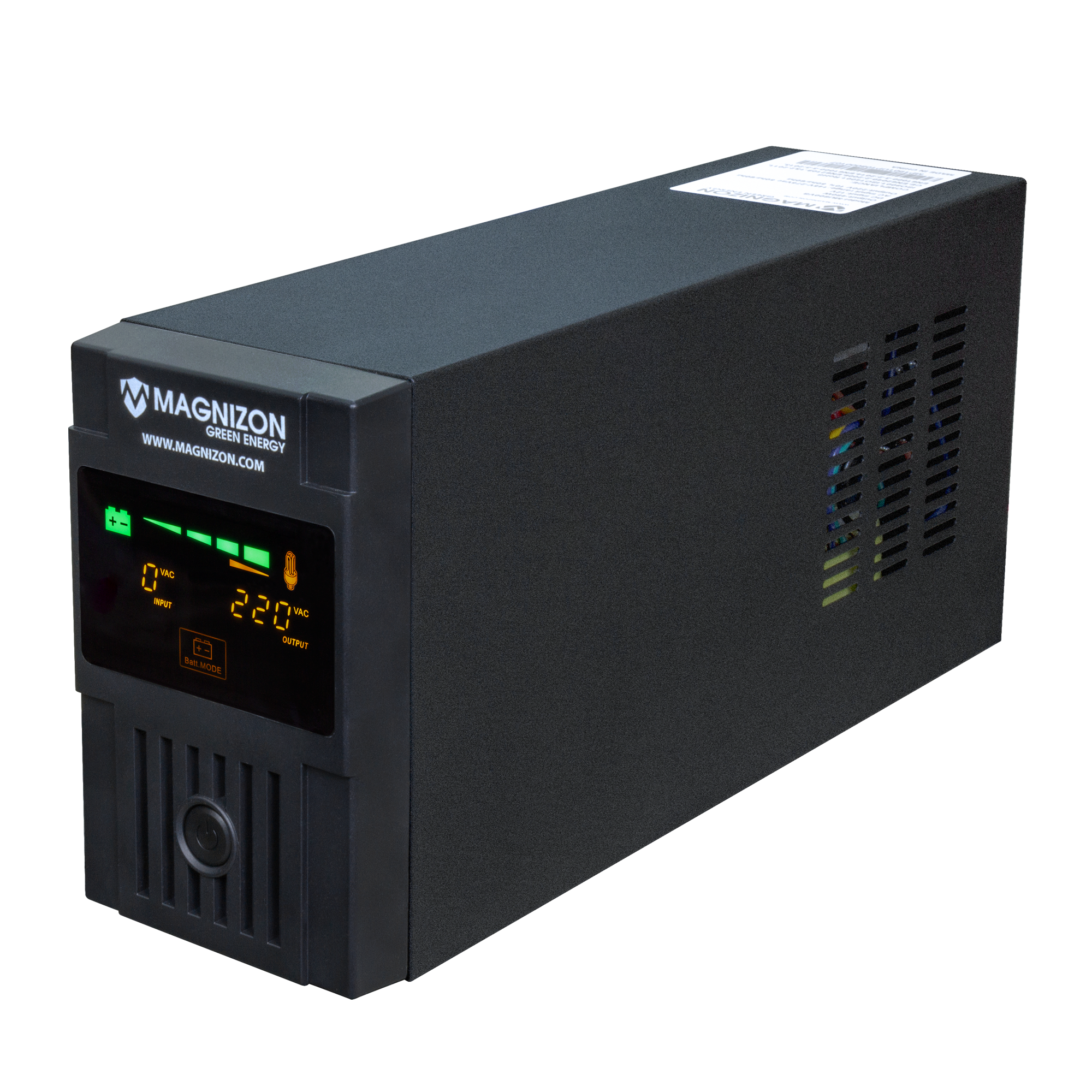

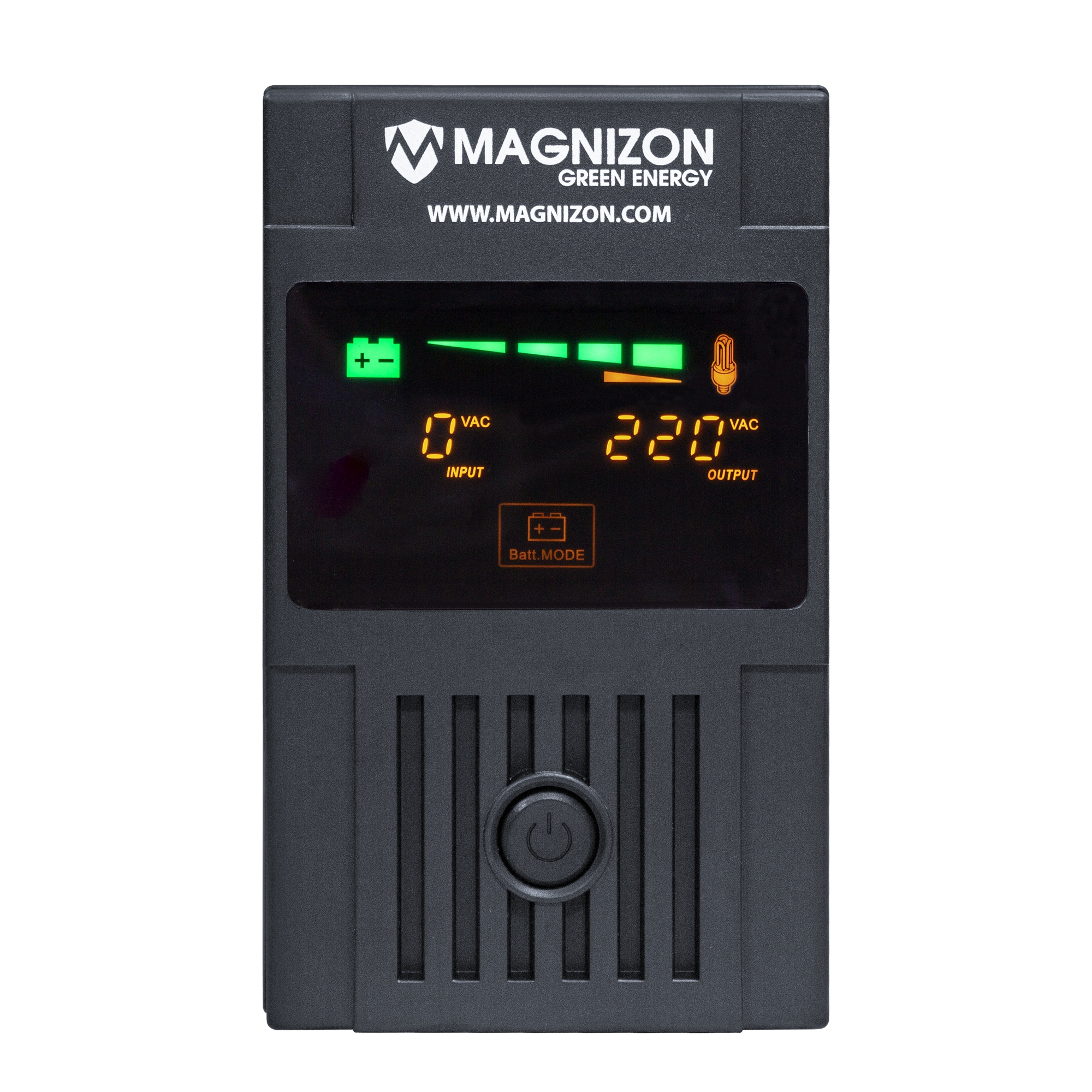

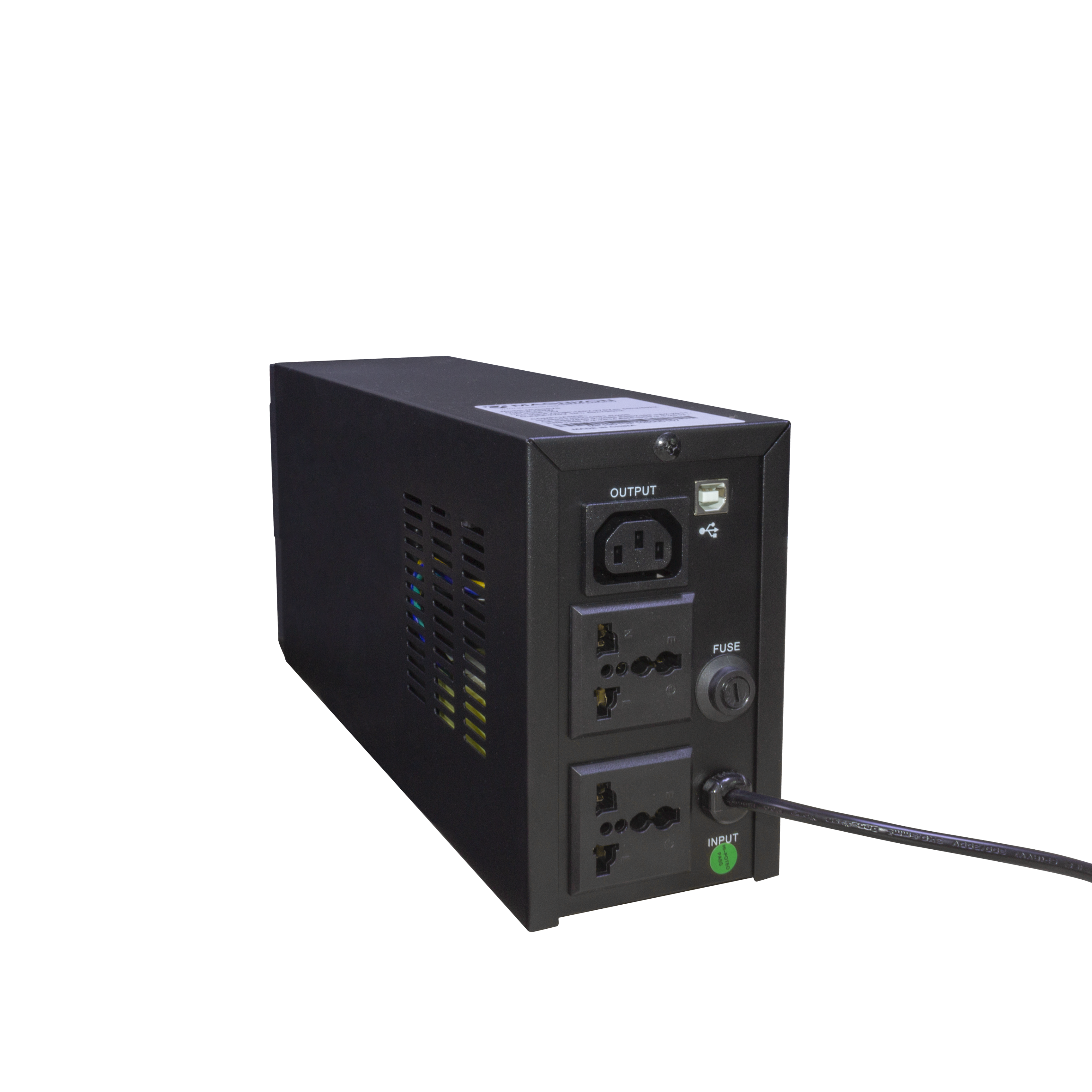

Images Available
key benefits, specs and more...
- Equipped with Boost and Buck AVR to stabilize input voltage.
- Wide input voltage range, AVR function.
- Built in DC start function enables UPS to start up without AC power supply.
- Intelligent battery management, support RS232 and USB communication monitoring
- Modem/Line Surge Protection: RJ11/RJ12/RJ45.
- Overload/ Over charge/ Short-circuit/Low battery automatic alarm protection.
- Auto restart while AC recovery.
- Small office and home office (SOHO) applications
- Photocopiers/EPBAX/FAX/SCANNER
- Music players & smart TV applications
- Desktops, servers & storage applications
|
Watts |
650W |
|
INPUT DATA |
|
|
Input Voltage |
220/230/240VAC |
|
Input Voltage Range |
140~300VAC |
|
Voltage Regulation Description |
Automatic voltage regulation (AVR)
maintains line power operation with an input voltage range of 140 to 300VAC |
|
Input Frequency |
50/60Hz(Auto sensing) |
|
Input power card |
1.2meters power cable suitable for
international sockets |
|
OUTPUT DATA |
|
|
Output Voltage |
220/230/240VAC |
|
Output Voltage Range |
210-245VAC |
|
AC Outlets |
4nos IEC C13 |
|
Output Frequency |
50/60Hz±0.5Hz |
|
Output Wave Form (Battery mode) |
Simulative Sine wave |
|
Transfer Time |
Typical 2-6ms,Max≦10ms |
|
Battery quantity & Ah |
1*12V/9AH |
|
Charging period |
4~6h to 90% capacity |
|
UPS AC Suppression Joule Rating |
1000 |
|
UPS AC Suppression Response Time |
Instantaneous |
|
EMI / RFI AC Noise Suppression |
Yes |
|
Protection |
Low & High voltage, overload and short
circuit protection |
|
Operation Temperature |
0~40℃ |
|
Humidity |
20%~90%(non-condensing) |
|
Noise |
≤40dB |
|
Net Weight(Kg) |
9.4 |
|
Dimension |
320*90*150 |
|
CERTIFICATIONS & WARRANTY |
|
|
UPS Certifications |
CE, EN/IEC 62040-1:2008, EN/IEC
62040-2:2006, EN/IEC 61000-3-3:2013, EN/IEC 61000-3-2:2014 |
|
UPS Quality standards |
ISO9001:2015, ISO14001:2015, RoHs |
|
Product Warranty Period (Worldwide) |
1-year limited Warranty |
