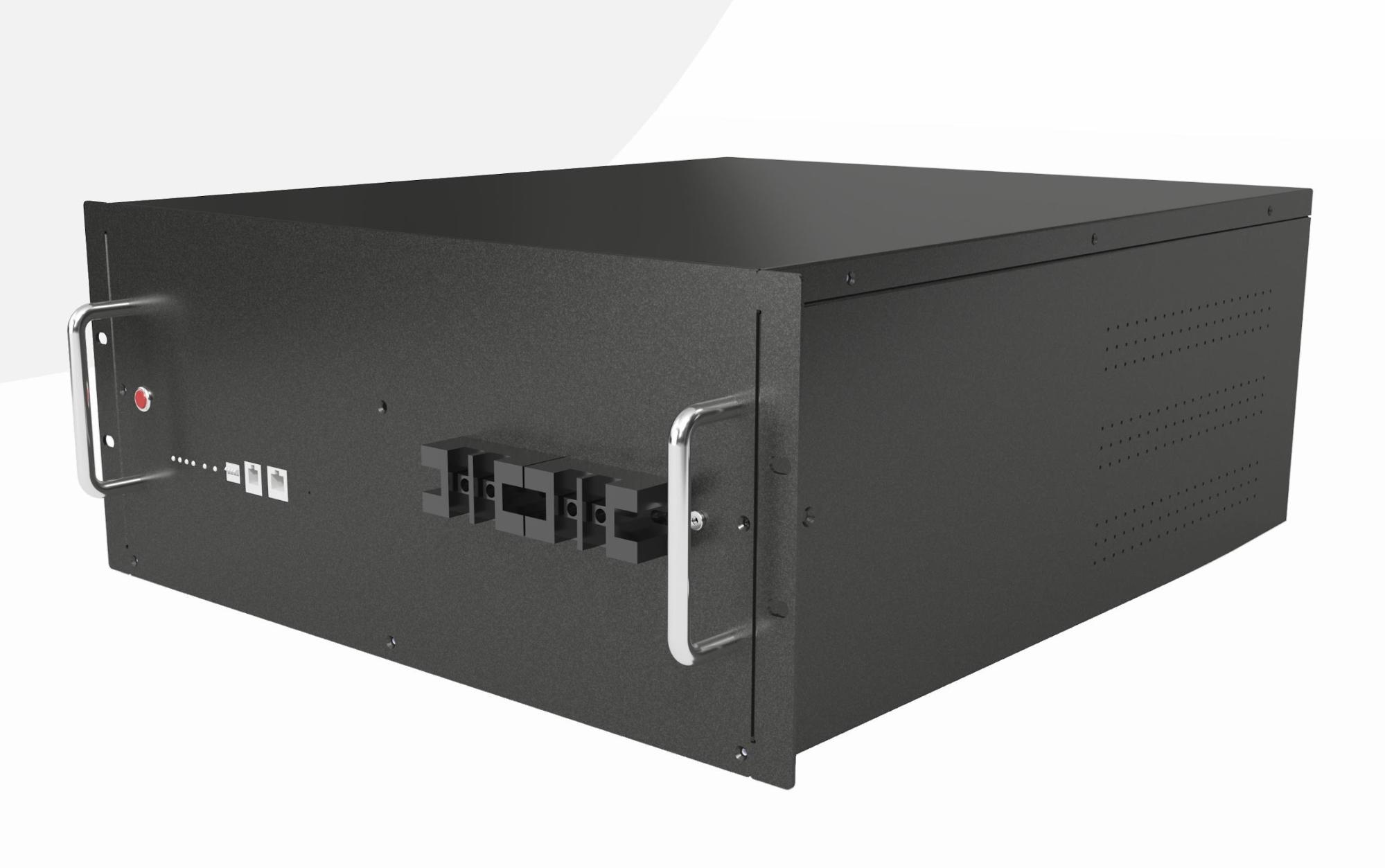

EL24-100

Open Circuit Voltage

24V~25.6V

Nominal capacity

105Ah

Based on 0.2C discharge current

Minimum capacity

100Ah

Energy Storage capacity

2688Wh

Initial impedance

≤150mΩ

AC 1KHz after standard Charge

Charge voltage

27V

Discharge cut-off voltage

20.25V

Standard charge current

20A

0.2C

Max. charge current

100A

1C

Current limit

10A

Standard discharge current

20A

0.2C

Max. discharge current

100A

Operating temperature

0°C ~ +55°C

Charge

-20°C~ +55°C

Discharge

weight

26kg

Dimension

3U

Excluding mounting ear

 W*H*D=440*130*480mm

Maximum parallel nos

15 sets (1500Ah )

1500Ah
