overview

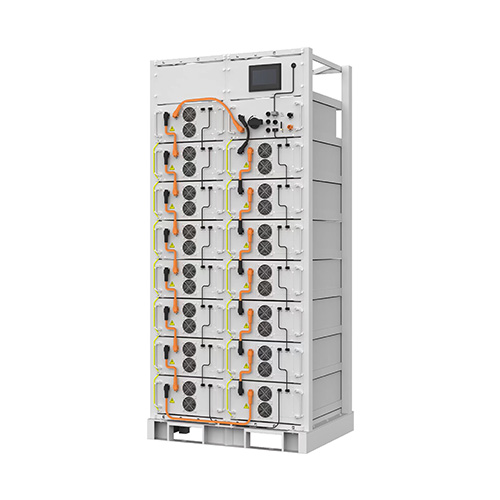

Magnizon ML series Industrial grade Lithium ion maintenance-free Battery pack is a Smart general purpose energy storage system with 15+ years of design life with >6000cycles of life. It meets with IEC, UL, JIS and BS standards. Modular battery packs with smart BMS and DC high voltage control system enables to suite any required DC bus of the inverters/UPS system. It is suitable for UPS/EPS, medical equipment, emergency light and security system applications. Excellent quality, excellent performance, High energy density, fully sealed structure, long service life, and high reliability, to provide customers with more convenient.
Images Available
key benefits, specs and more...
Solid-state Supercapacitor Battery technology
Smart BMS
Ultra long cycle life
Extreme temperature
Safest technology
Rarely maintenance
Solar hybrid power stations
Smart min-grids
Telecom towers
Commercial solar/wind storage power plants
|
Model |
ML200K280 |
|
Product
Vah rating |
716.8V280Ah |
|
Nominal
Voltage |
716.8V |
|
Nominal
Capacity (Ah) |
280Ah |
|
Nominal
Energy storage (KWh) |
200KWh |
|
No of
51.2V/280Ah Modules |
14nos |
|
Dimension
Module |
483x245x792x14nos (mm) |
|
Dimension
Rack |
1090x780x2190mm |
|
Weight(Kgs) |
1804kgs |
|
Specifications |
|
|
Nominal
Capacity (KWh) |
200.7KWh |
|
Discharge
cut-Off Voltage (V) |
616 |
|
Charge
Cut-Off Voltage (V) |
795.2V |
|
Recommended
Charge/Discharge Current |
100Amp |
|
Max.
Charge/Discharge working current |
200Amp |
|
Communication |
RS485/RS232/CAN |
|
Working
Temperature |
0~50degC Charge, -10~50degC Discharge |
|
Transport/
Storage Temperature Range |
-20~60degC
Discharge |
|
Certification |
CE/IEC/UL/UN38.3/MSDS |
|
Design
Life |
15+ Years |
|
Cycle
Life |
(0.5C/0.5C-80%DOD) >6000 Cycles |
|
Parallel
Function |
Supports 16units in Series (3.22MWh) |
|
Quality
Standards |
ISO9001:2015, ISO14001:2015, RoHs |
Battery Module
Specs
|
Model |
MLM-51V280 |
|
Product
Vah rating |
51.2V280Ah |
|
Nominal
Voltage |
51.2V |
|
Nominal
Capacity (Ah) |
280Ah |
|
Dimension
Module |
483x245x792(mm) |
|
Weight(Kgs) |
114Kgs |
|
Specifications |
|
|
Nominal
Voltage |
51.2V |
|
Nominal
Capacity (Wh) |
14336Wh |
|
Discharge
cut-Off Voltage (V) |
44.8V |
|
Charge
Cut-Off Voltage (V) |
56.8V |
|
Recommended
Charge/Discharge Current |
100Amp |
|
Max.
Charge/Discharge working current |
200Amp |
|
Communication |
RS485/RS232/CAN |
|
Working
Temperature |
0~50degC Charge, -10~50degC Discharge |
|
Transport/
Storage Temperature Range |
-20~60degC
Discharge |
|
Certification |
CE/IEC/UL/UN38.3/MSDS |
|
Design
Life |
15+ Years |
|
Cycle
Life |
(0.5C/0.5C-80%DOD) >6000 Cycles |
|
Series
Function |
Supports 15units in Series |
|
Quality
Standards |
ISO9001:2015, ISO14001:2015, RoHs |
