overview

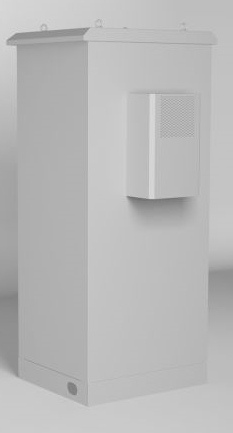

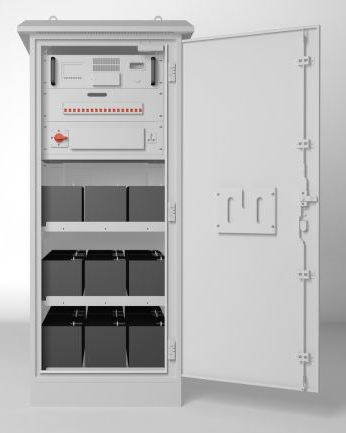

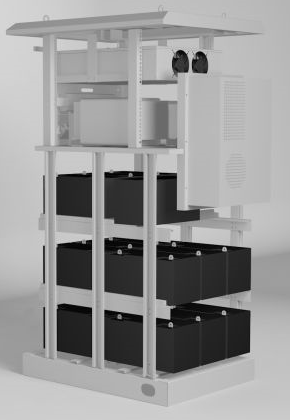

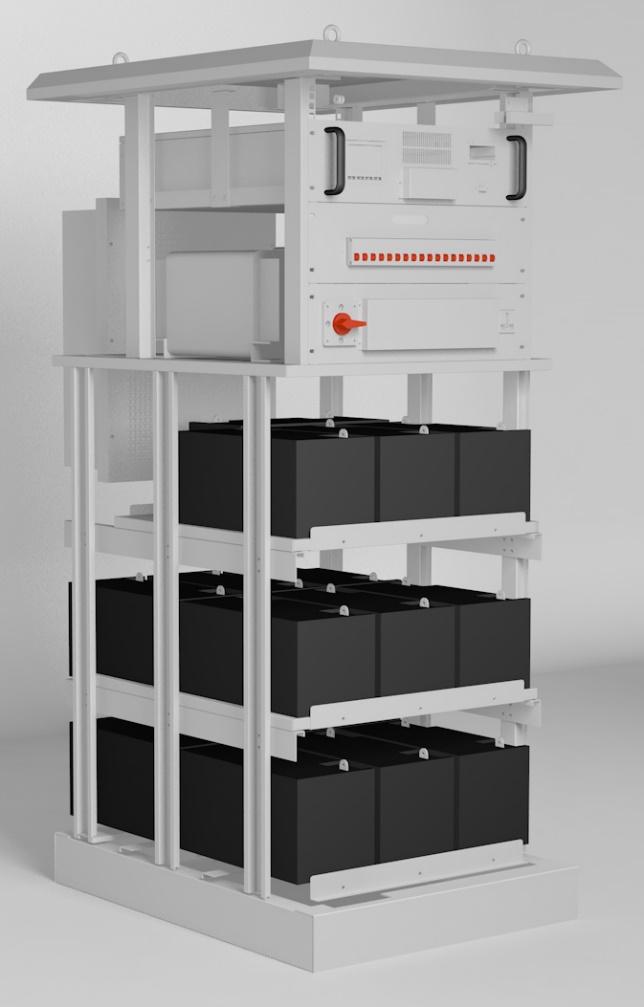

MUOD1K Outdoor Intelligent Smart Online UPS provide continuous pure sine wave AC power supply for outside communications / network equipment with high input and output power factor, self-adjusting output frequency, smart battery management system and network management, intelligent built-in air condition unit to support high ambient operating temperatures up to 55deg C. Built in pure copper based isolation transformers ensures additional level of protection and safety. Built-in static and manual bypass switches helps zero mSec UPD down time during repair or maintenance schedule, this also helps high availability of uninterrupted good quality of power supply all the time.
key benefits, specs and more...
- Pure sine wave output with true on-line double conversion technology
- Built-in pure copper based Input/output isolation transformer
- Built-in static bypass switch
- Built-in manual bypass switch
- Built-in AC input surge protector
- Built-in AC DB with connectors and AC breakers with surge protection
- Intelligent air condition unit to support higher temperature operational environment
- High temperature resistant, anti-cold, sealing level of IP65
- Advanced semiconductor technology with DSP based smart control systems
- Wide range of input voltage and frequency of input window (- 45% +35% rated voltage and ± 10% rated frequency)
- Wide range of input voltage while input PF>99%
- Output PF of 0.8 more powerful load capability
- Protection: Overvoltage, over load, low voltage, short circuit, battery over charge, battery deep discharge and over temperature
- LCD/LED display, monitoring all the operation status and alarms
- Abundant interface：RS232, SNMP
Critical applications where ever higher reliability is needed
Outdoor CCTV, security & surveillance
Small Data centers & computer rooms
Outdoor ATM closets, RTA signals
Wide Telecom applications
Defense and boarder security forces
Mountains, bad environment, such as high temperature (+55 °C) / low temperature (-40 °C)
Severe dust, moisture, rain, mist erosion, very poor power quality (voltage long term higher than 277V or less than 160V, frequency abnormal change) in the area
Power Generation & distribution stations
